Three Point Mounted Farming Equipment Heavy Duty Disc Harrow

The 1BJ Series Folding Hydraulic Offset Middle Harrow is designed for breaking up clods in heavy, sticky soils after tillage,

as well as for seedbed preparation, soil scarification, and clearing plant stubble before cultivation in lighter soils.

It features a robust structure, high working efficiency, excellent soil penetration, effective leveling and scarification,

a horizontal hinge mechanism, and the convenience of wide working width and narrow transport width.

Model 1BJ-3.0 1BJ-3.4 1BJ-4.0 1BJ-4.4 1BJ-5.3 Working width(mm) 3000 3400 4000 4400 5300 Working depth(mm) 140 Diameter of disc 560mm / 22'' Thickness of disc(mm) 4 No. Of disc(pcs) 28 32 36 40 48 Weight(kg) 1300 1500 1700 2000 2300 Matched power(hp) 70-90 80-100 100-120 120-140 140-160 Linkage Hydraulic trailed with tractor

Model 1BJ-3.0 1BJ-3.4 1BJ-4.0 1BJ-4.4 1BJ-5.3 Working width(mm) 3000 3400 4000 4400 5300 Working depth(mm) 140 Diameter of disc 560mm / 22'' Thickness of disc(mm) 4 No. Of disc(pcs) 28 32 36 40 48 Weight(kg) 1300 1500 1700 2000 2300 Matched power(hp) 70-90 80-100 100-120 120-140 140-160 Linkage Hydraulic trailed with tractor

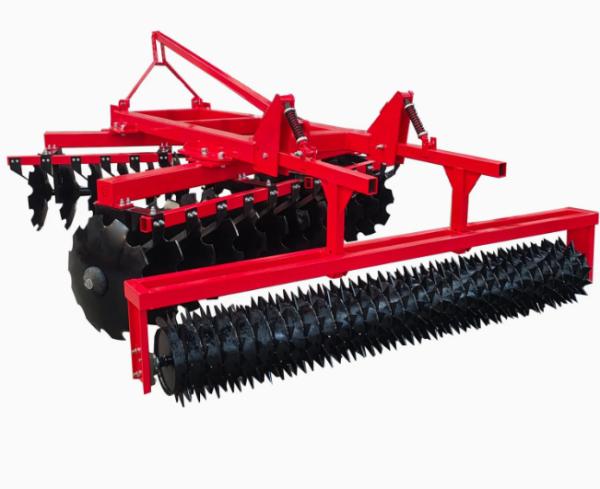

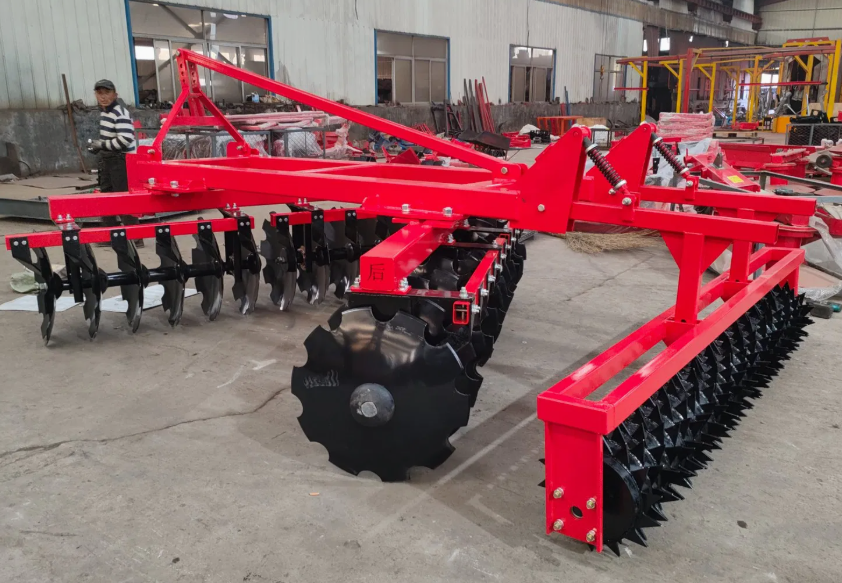

Three Point Mounted Farming Equipment Heavy Duty Disc Harrow Images
