Brand Name : OEM
Model Number : 1LY(T)-425
Certification : ISO9001
Place of Origin : CHINA
MOQ : 1 pcs
Payment Terms : T/T
Supply Ability : 5000pcs per month
Delivery Time : 15-20 days
Packaging Details : Wooden case
working width : 750mm
working depth : 250-300mm
number of disc : 3pcs
type of disc : 660*5mm
weight : 400mm
tractor power : 50
mounted cat : catII

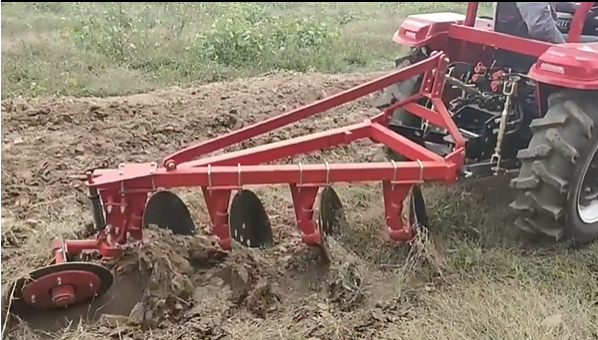

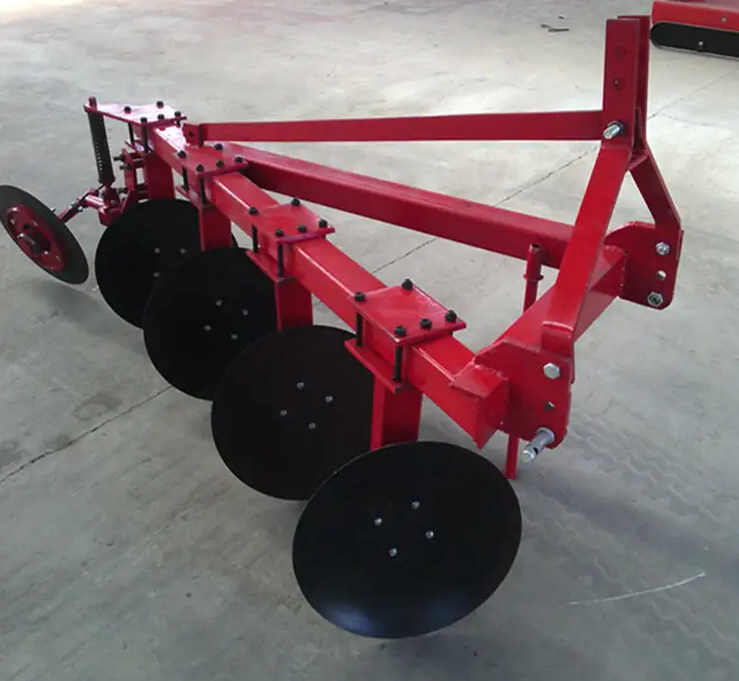

Disc plough is attached to four-wheel tractor; the discs of plough are revolving to furrow the land
during operation.
The disc plow is especially suitable for land which have weeds, stems and frictional soil with
small brick etc.
Model | 1LY(T)-325 | 1LY(T)-425 | 1LY(T)-525 | 1LY(T)-625 |
Width of cut (mm) | 750 | 1000 | 1250 | 1500 |
Depth of cut (mm) | 250~300 | |||
Dia of disc (mm) | 660 | |||
Q'ty of disc | 3 | 4 | 5 | 6 |
Weight (kg) | 420 | 490 | 565 | 640 |
Tractor power (hp) | 50 | 90 | 120 | 160 |
Mounted cat | Mounted Cat II |
![]() |
Farm Machinery 1ly Series Tractor Mounted Disc Plough 325 425 Images |
